PTFE Products Range from PTFE Products Manufacturer in India

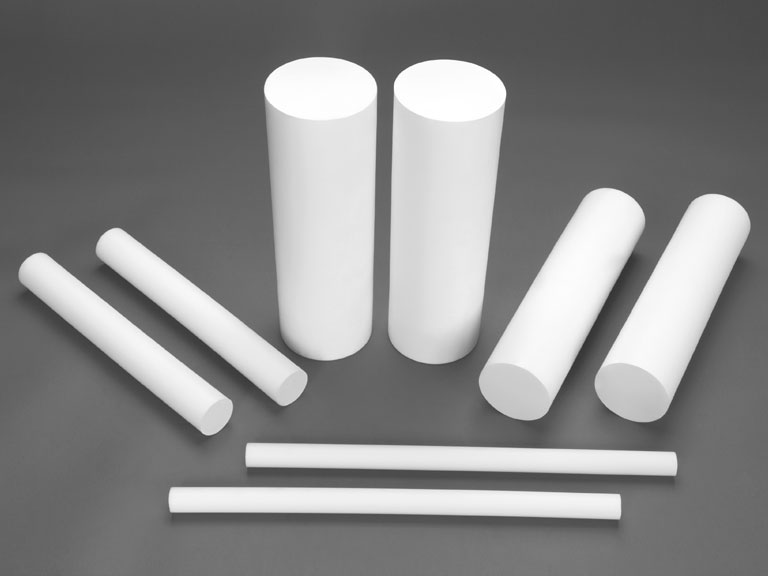

Hindustan Nylons manufactures Molded PTFE Rods in variety of standard sizes.

Diameter: 25mm - 500mm
Length: 300mm.
PTFE Rods - Molded are manufactured in Virgin & Filled Grades of PTFE

• 15/25% Glass Filled TFE-M.
• 25/35% Carbon Filled TFE-M.
• 15% Graphite Filled TFE-M.
• 40 / 60% Bronze Filled TFE-M.
• 55% Bronze + 5% MoS₂ Filled TFE-M.
• 15% Glass + 5% MoS₂ Filled TFE-M.
• TFE-M Components can be available in Non standard - customer specific composition, subject to minimum order quantity
• TFE-M Component can be available with Sodium Itching / Chemical Treatment, subject to minimum order quantity.

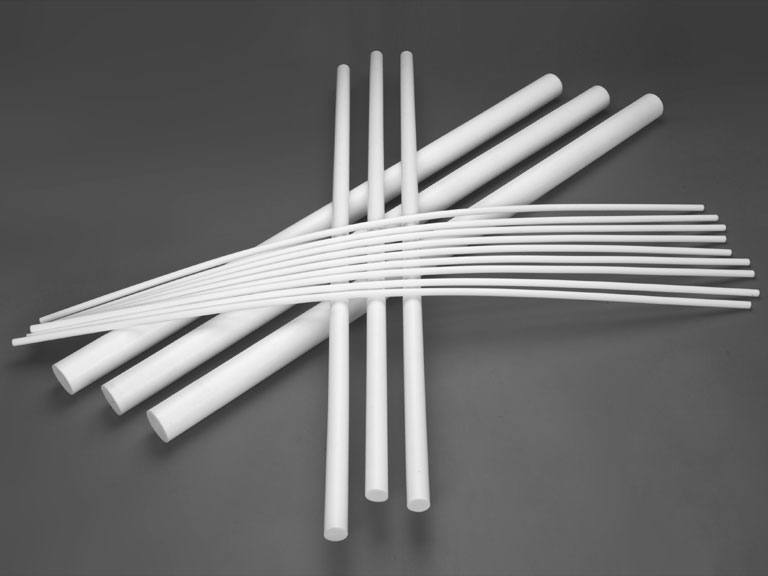

Hindustan Nylons manufactures Ram Extruded PTFE Rods in variety of standard sizes.

Diameter: 5mm - 100mm
Length: 900mm / 1000mm / 2000mm
PTFE Rods - Ram Extruded - are available in Standard grades in Virgin Conventional PTFE & Virgin Chemically Modified PTFE
End Use: As insulation parts in Electrical & Electronic applications.

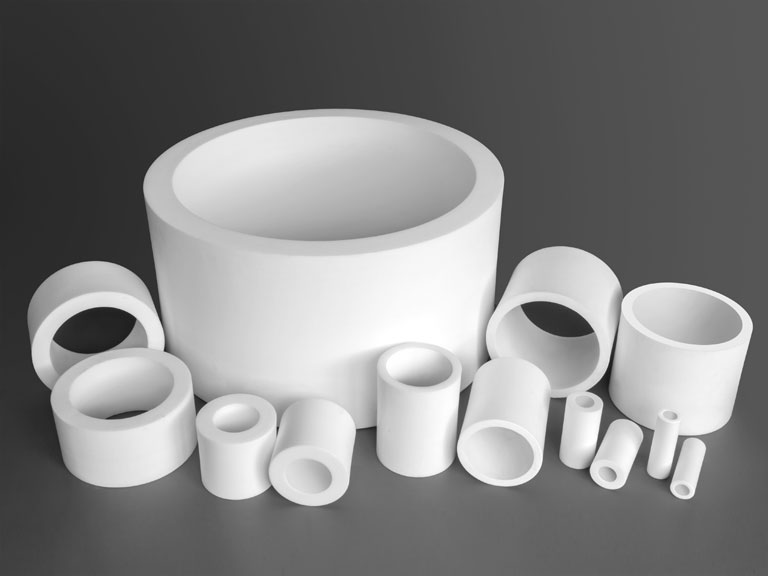

Hindustan Nylons manufactures Molded PTFE Bush in variety of standard sizes.

Outer Diameter: Up to 500mm
Length: Up to 1000mm
PTFE Bush - Molded are manufactured in Virgin & Filled Grades of PTFE
End Use: For making BV, BFV, PGV components for chemical & pharmaceutical applications

• 15/25% Glass Filled TFE-M.
• 25/35% Carbon Filled TFE-M.
• 15% Graphite Filled TFE-M.
• 40 / 60% Bronze Filled TFE-M.
• 55% Bronze + 5% MoS₂ Filled TFE-M.
• 15% Glass + 5% MoS₂ Filled TFE-M.
• TFE-M Components can be available in Non standard - customer specific composition, subject to minimum order quantity
• TFE-M Component can be available with Sodium Itching / Chemical Treatment, subject to minimum order quantity.

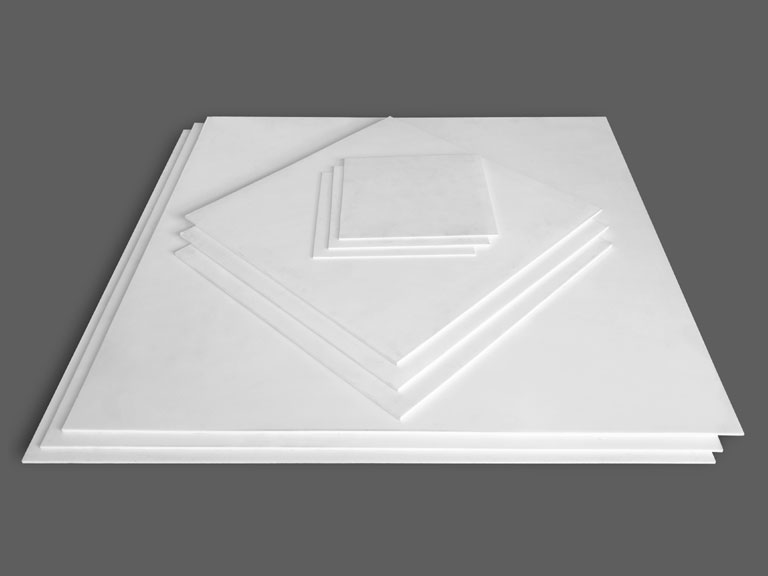

Hindustan Nylons manufactures Molded PTFE Sheet in variety of standard sizes.

Dimension: Up to 1200mm X 1200mm
Thickness: Up to 100mm
PTFE Sheet - Molded - are manufactured in Virgin & Filled Grades of PTFE
End Use: Gasketing, Sealing & support Pads in Chemical, Pharmaceutical plants

• 15/25% Glass Filled TFE-M.
• 25/35% Carbon Filled TFE-M.
• 15% Graphite Filled TFE-M.
• 40 / 60% Bronze Filled TFE-M.
• 55% Bronze + 5% MoS₂ Filled TFE-M.
• 15% Glass + 5% MoS₂ Filled TFE-M.
• TFE-M Components can be available in Non standard – customer specific composition, subject to minimum order quantity
• TFE-M Component can be available with Sodium Itching / Chemical Treatment, subject to minimum order quantity

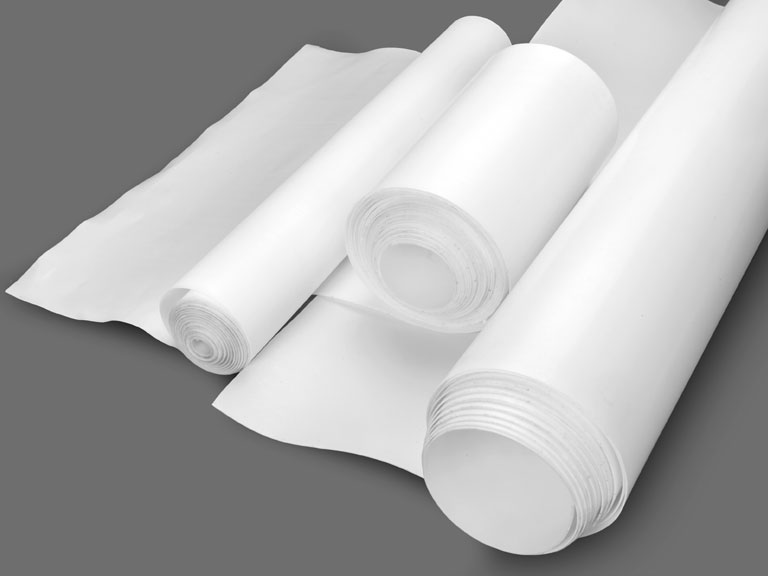

Hindustan Nylons manufactures PTFE Skived Sheet in variety of standard sizes.

Thickness: Up to 3mm
Width: Up to 1200mm
PTFE Skived Sheets are available in Standard grades such as Virgin Conventional PTFE &Virgin Chemically Modified PTFE
End Use: Gasketing, Sealing & support Pads in Chemical, Pharmaceutical plants

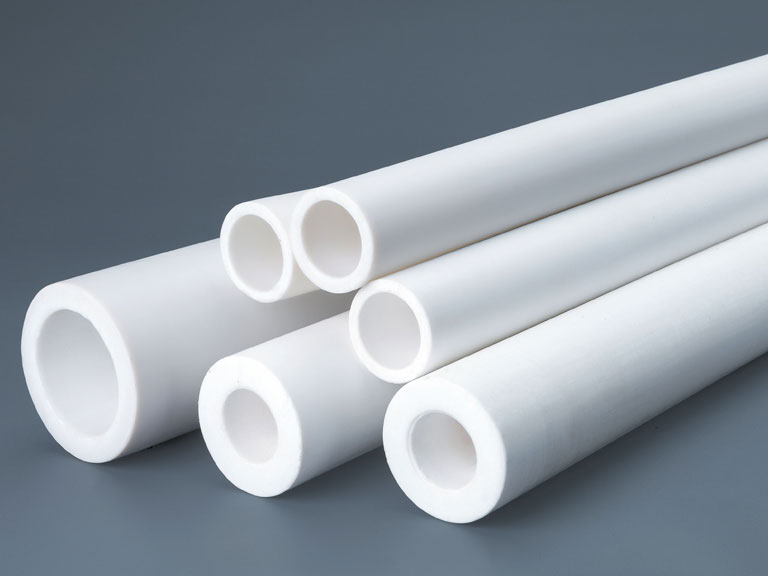

Hindustan Nylons manufactures Ram Extruded PTFE Pipes in variety of standard sizes.

Diameter: Up to 100mm
Length: Up to 3300mm
PTFE Pipe - Ram Extruded - are available in Standard grades such as Virgin Conventional PTFE & Virgin Chemically Modified PTFE
End Use: For transporting aggressive chemicals, Petroleum products, Adhesives, Pharmaceuticals, Medicines

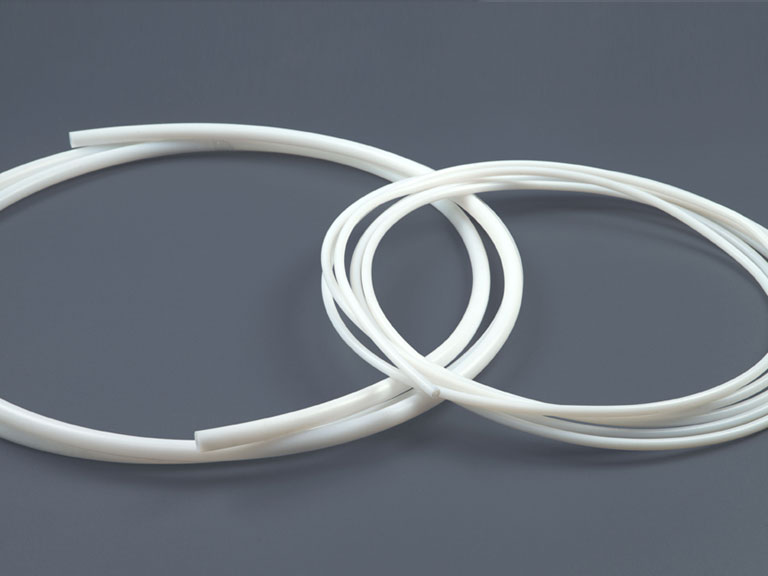

Hindustan Nylons manufactures Paste Extruded PTFE Tubings - in variety of standard sizes.

Wall Thickness: 0.8, 1, 1.5, From 1.6 mm ID, up to 25 mm ID
End Use: For transporting aggressive chemicals, Petroleum products, Adhesives, Pharmaceuticals, Medical Instruments.

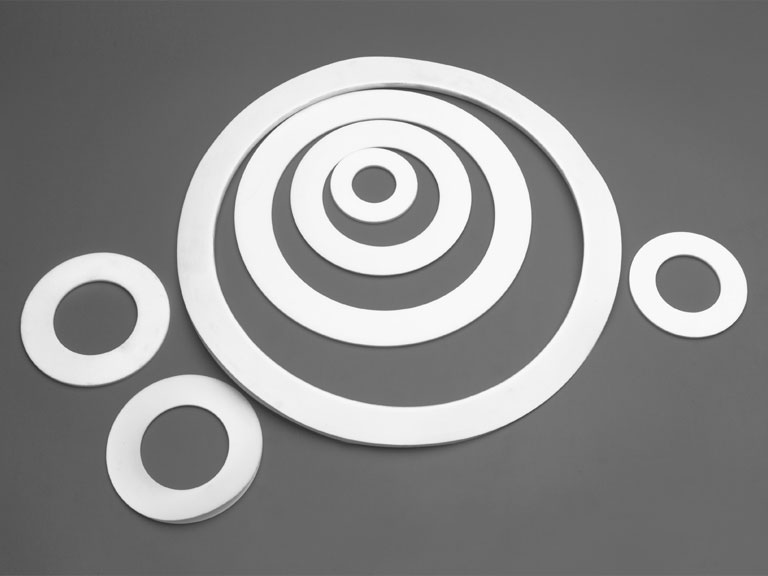

Hindustan Nylons manufactures PTFE Gaskets as per variety of standards such as ASA, DIN, BS etc for raised face & full face flanged joints.
PTFE Gaskets are produced in various types such as Slit type Envelop Gaskets, Milled type Envelop Gaskets & Ready Cut / Solid Gaskets.

Diameter: Upto 1000 NB
Thickness: 0.5+0.5, 0.5 + Gap + 0.5, 1.5, 2, 3mm
PTFE Gaskets can be manufactured as per Customer specific sizes subject to minimum order quantity

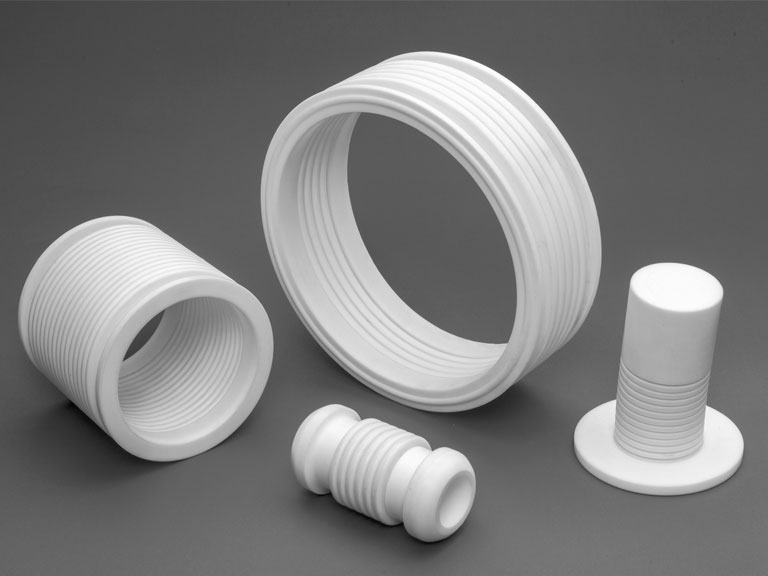

Hindustan Nylons manufactures PTFE Bellows / Expansion Joints from full vacuum up to high pressure (10 kg/cm²) application with accessories such as internal sleeve, external ring, connection Rods, Connection Flanges etc.

Diameter: 25mm ID ~ 600mm ID
Length: upto 300mm
PTFE Bellows / Expansion Joints can be manufactured as per Customer specific sizes subject to minimum order quantity

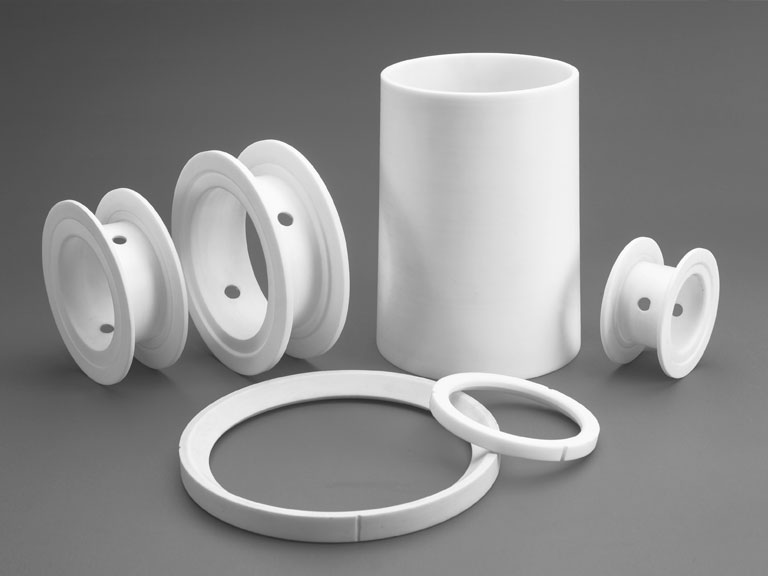

Hindustan Nylons manufactures PTFE Valve Components such as:- Ball Valve Seals & Seats, Butterfly Valve Seats & Liners, Plug Valve Sleeves in variety of Grades such as:- Virgin PTFE, Modified PTFE, Filled Grades of PTFE.

Diameter: upto 1000mm
Length: upto 1000mm
PTFE Valve Components can be manufactured as per Customer specific sizes subject to minimum order quantity

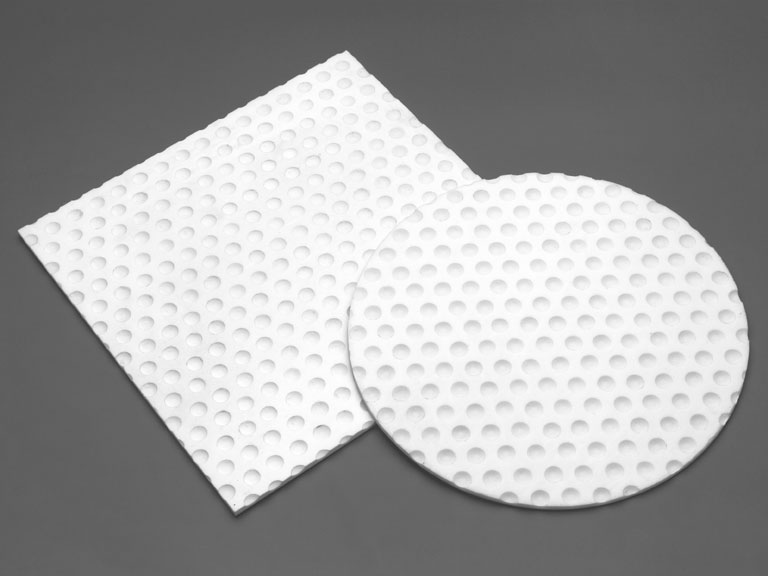

Hindustan Nylons manufactures PTFE Bridge Bearing Pads as per Indian Standard: Code IRC-83 with one side dimpled for lubricant holding & other side - Sodium Itched - for Gluing.

Size: upto 1000mm Square or Circular
Thickness: 3mm ~ 6mm
PTFE Bridge Bearing Pads can be manufactured as per Customer specific sizes subject to minimum order quantity

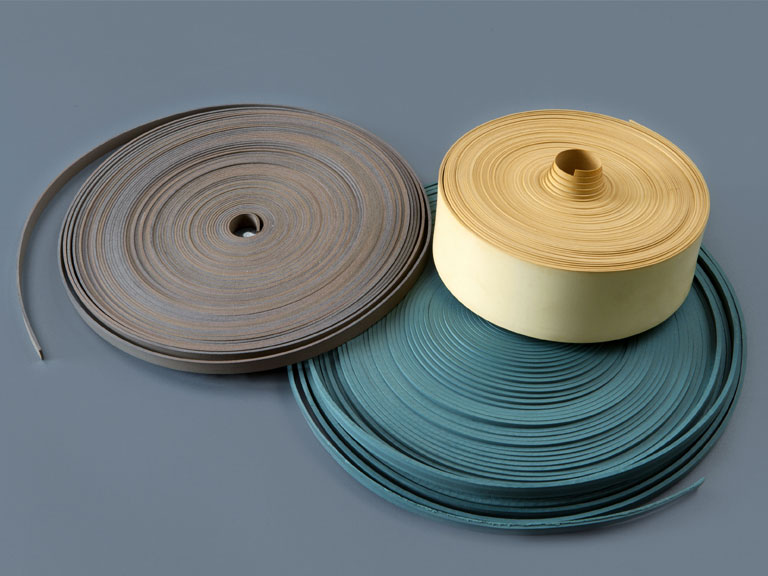

Hindustan Nylons manufactures PTFE Wear Strips / Bands. PTFE Wear Strips / Bands are manufactured in Virgin PTFE, Chemically Modified PTFE, Carbon Filled PTFE, Bronze Filled PTFE & other filled grades of PTFE.

Standard Sizes: 5.8, 9.5, 14.8, 19.8 & 24.8 mm Widths, 2.5 mm Thk in 25 Metres Length

PTFE Wear Strips / Bands can be manufactured as per Customer specific sizes subject to minimum order quantity
Non-standard Sizes: upto 50 mm Width, upto 5 mm Thk & 25 Metres Length

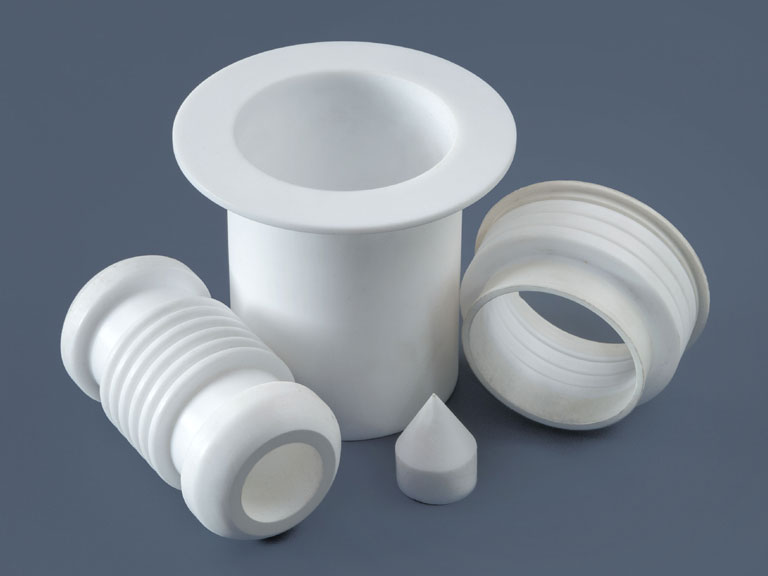

Hindustan Nylons manufactures PTFE & Filled PTFE Machined Components such as PTFE Balls, PTFE 'O' Rings, PTFE Chevron Packings, PTFE D-Rings etc as per Customers specification & Drawings.

Size: upto 1000mm Diameter & 1000mm L
PTFE Machined Components can be manufactured as per Customer specific sizes subject to minimum order quantity

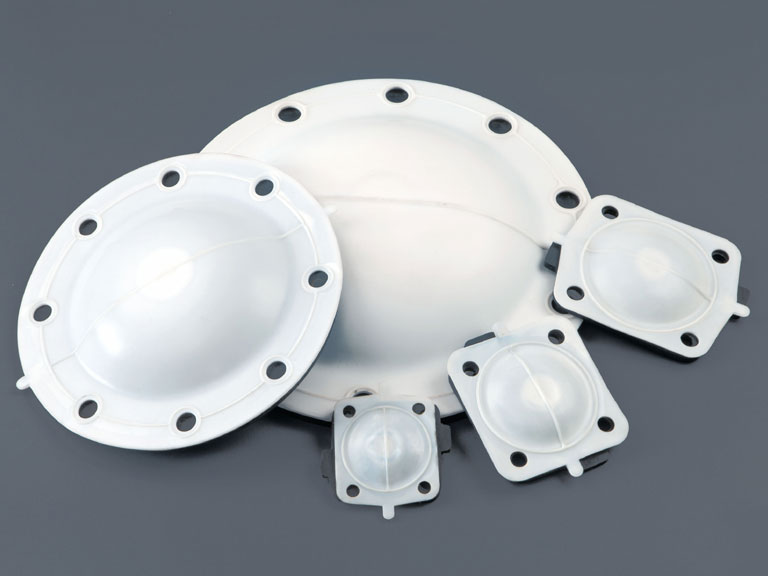

Hindustan Nylons manufactures PTFE Diaphragms - plain, bonded to Rubber / Cushioned by Rubber for Diaphragm Valves, Diaphragm Pumps.

Size: upto 1000mm Dia
Thickness: Upto 3~5mm
PTFE Diaphragm are manufactured in Virgin PTFE, Chemically Modified PTFE Auntistatic PTFE & conductive PTFE depending upon service conditions & application.

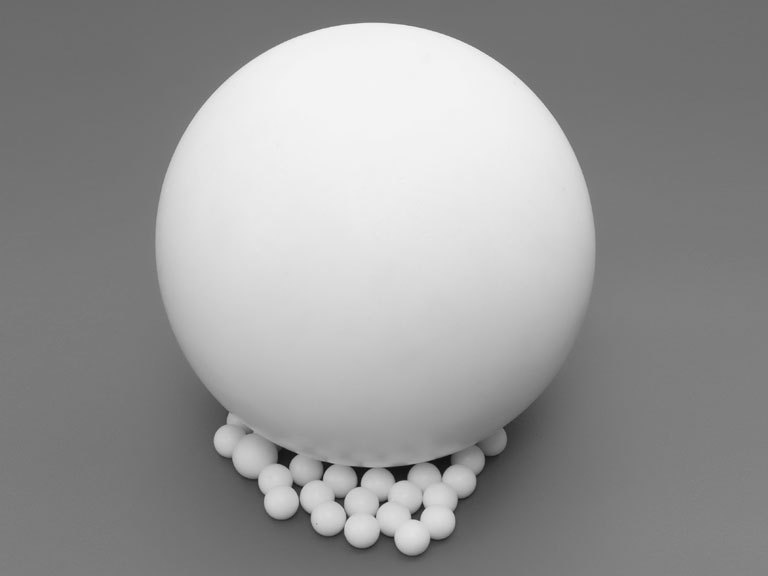

Hindustan Nylons manufactures PTFE Balls / PTFE Spheres in variety of Grades such as Virgin PTFE, Chemically Modified PTFE, Carbon Filled PTFE, Glass Filled PTFE, Bronze Filled PTFE & other filled grades of PTFE.

Standard Sizes: 6, 8, 10, 12, 16, 19, 20, 22 & 25 mm Diameter
Non-standard Sizes: PTFE Balls more than 25 mm Diameter can be manufactured upto 150 mm Diameter, on request, subject to minimum order quantity.

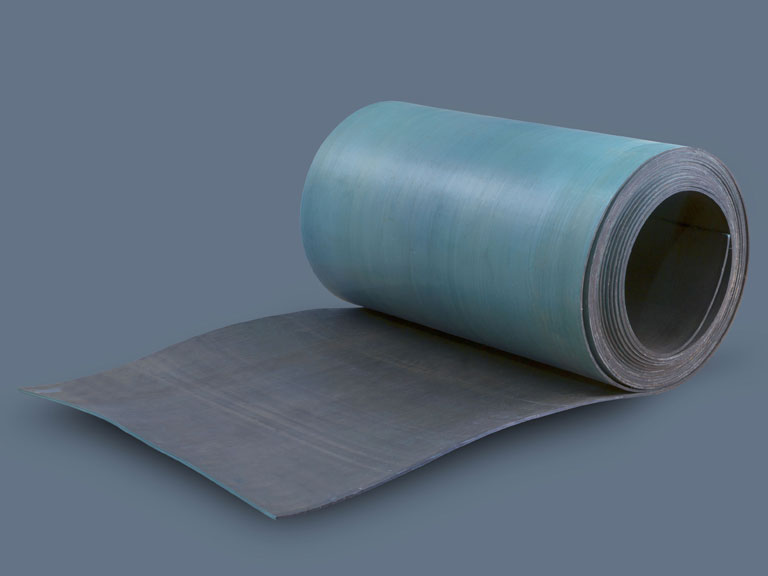

Hindustan Nylons manufactures Trexonn Brand Machine Tool Slideway Liners. Trexonn Slideway Liner basically consists of Liner fixed on sliding part of machine Slideway for antifriction, vibration dampening purpose.

Standard Sizes: 1, 1.5, 2, 2.5 & 3 mm Thickness, 305 mm Width in Roll form.
Non-standard Sizes: Trexonn Machine Tool Slideway Liners can be manufactured in Non-standard sizes on request, subject to minimum order quantity.

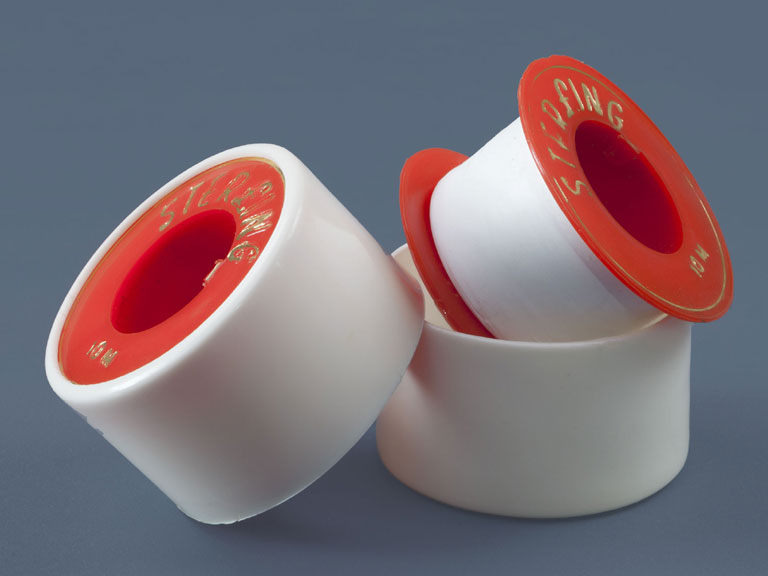

Hindustan Nylons manufactures sterling brand un-sintered PTFE Thread Seal Tape in variety of Models & sizes:

Model: Premium
Size: 12/19/25mm W X 0.075mm Thk X 12 Mtr L
Density (gm/cc): 1.00
Service Conditions: High Pressure → 250 kg/cm² - 250°C
Applications: Hydraulic, Petroleum, Petrochemicals, Gaseous, Space, Nuclear

Model: Standard
Size: 12/19/25mm W X 0.075mm Thk X 10 Mtr L
Density (gm/cc): 0.75
Service Conditions: Medium Pressure → 100 kg/cm² - 200°C
Applications: Pharma, Pneumatic, Food & Beverages

Model: General
Size: 12/19/25mm W X 0.075mm Thk X 10 Mtr L
Density (gm/cc): 0.25
Service Conditions: Low Pressure → 1 kg/cm² - 50°C
Applications: Domestic Water

Sterling PTFE Thread Seal Tape can be manufactured in non-standard sizes / quality as per customers' specification.

Sterling Un-sintered PTFE Thread Seal Tape are manufactured & available as per variety of grades in specifications within BS-4375 replaced by BS-7786, ASTM-D-6585, MIL-T-27730 replaced by MIL-A-A58092, AS-1272 & IS-14635 based on customers' instructions
